Glasfaserkabel
A-DQ(BN)2Y
ø 6,3 mm | ø 7,0 mm

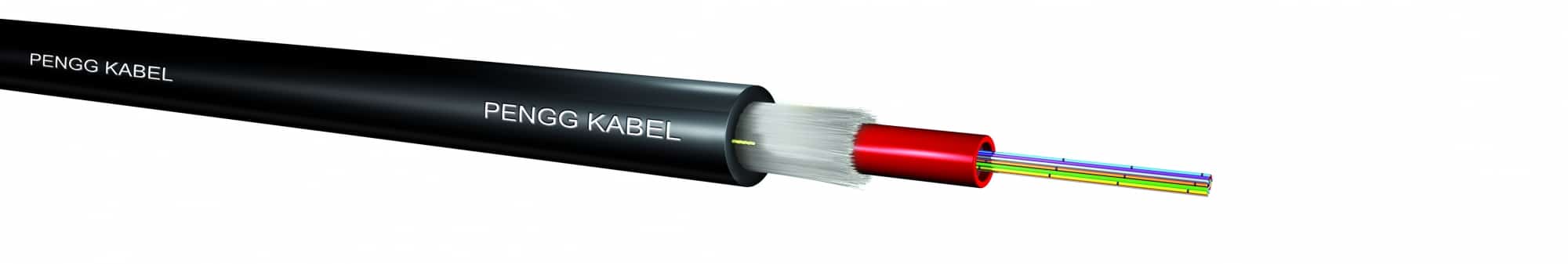

Glasfaserkabel
Center unitube construction, metal-free, longitudinally watertight, slight rodent protection
Suited for outdoor use - for fixed laying in cable ducts, conduits or direct burial
Application
- central, gel-filled loose tube
- strength members and simultaneous rodent protection by swellable glass yarns
- PE-outer sheath (1,0 mm or 1,3 mm), UV-resistant, black
Fiber / tube colors
PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).
Standard marking
PENGG KABEL – cable type – fiber count/type – ID number – meter
On request
- increased tensile strength
- other sheath color
- colored stripes
- HDPE or LDPE sheath
- other marking
This data sheet describes a standard type.
Numerous variants are available on request.
tube diameter mm |
number of tubes | max. fibers / tube | max. number of fibers | tensile strength approx. N |
weight approx. kg/km |
outer diameter approx. mm |
---|---|---|---|---|---|---|
3,0 | 1 | 24 | 24 | 1.000 | 30 | 6,3 |
3,0 | 1 | 24 | 24 | 1.000 | 40 | 7,0 |
Technical data
according to IEC EN 60794-3 – Outdoor optical fibre cables
tensile strength | see above table |
compressive strength (crush) | 2000 N/10 cm |
impact | 5 Nm |
torsion | 5 cycles ±360° |
kink, cable | The cable do not form a kink when a loop is drawn togehter to a diameter of 100 mm. |
min. bending radius | R = 20 x D (cable outer diameter) |
temperature range | storage and transport: -40°C up to +70°C installation: -5°C up to +60°C operation: -25°C up to +70°C |
water penetration | No water on free end. |
Subject to technical alterations.
