Glasfaserkabel

A-D2Y(ZN)2Y (HD)
ADSS 9kN

Glasfaserkabel

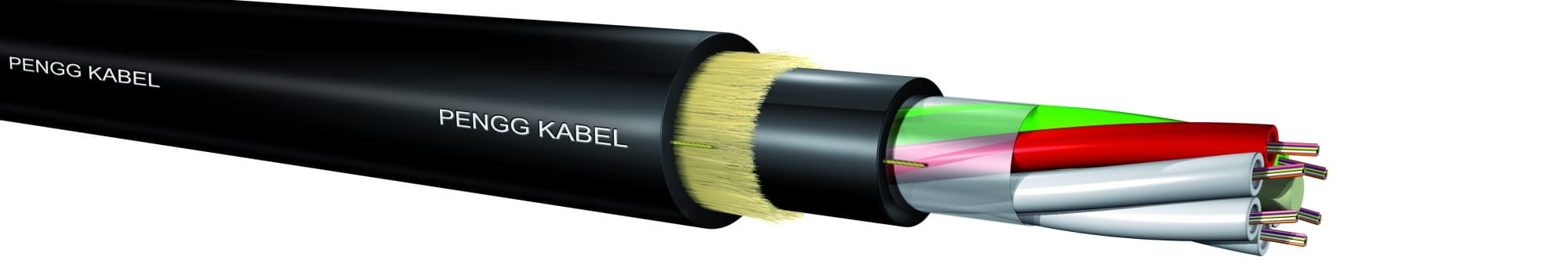

Loose tube construction, metal-free

ADSS (all-dielectric-self-supporting) cable are metal-free air hanging cable, suited for fixing on poles. The pole distance is at 9 kN maximum 200 m.

Non-binding inquiry
Structure, Laying, Imprint
Application
  • FRP-central element
  • jelly-filled loose tubes, SZ-cabling (if necessary with fillers)
  • PE-inner sheath (1,0 mm), black
  • strength members (swellable aramid yarns (dry cable core))
  • HDPE-outer sheath (1,2 mm), UV-resistant, black



Fiber / tube colors

PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).



Standard marking

PENGG KABEL – cable type – fiber count/type – ID number – meter



On request
  • dry or jelly-filled cable core
  • other sheath colors
  • colored stripes
  • tracking resistant outer sheath
  • other marking



This data sheet describes a standard type.
Numerous variants are available on request.

Product Dates
tube diameter
mm
number of tubes max. fibers / tube max. number of fibers tensile strength
approx. N
weight
approx. kg/km
outer diameter
approx. mm
2,3
2,3
2,3
2,3
2,3
5*
6
8
10
12
12
12
12
12
12
60
72
96
120
144
9.000
9.000
9.000
9.000
9.000
120
145
160
200
250
12,6
14,1
14,6
16,8
18,0

* at lower number of tubes corresponding blind elements are used

Technical Details
Technical data

according to IEC EN 60794-4 – Cables along overhead lines (ADSS)

tensile strength see above table
compressive strength (crush) 3000 N/10 cm
impact 25 Nm
torsion 5 cycles ±360°
kink, cable The cable do not form a kink when a loop is drawn together to a diameter 12 times the cable outer diameter.
min. bending radius R = 20 x D (cable outer diameter)
temperature range storage and transport: -40°C up to +70°C
installation: -5°C up to +60°C
operation: -30°C up to +70°C
span distance up to 200 m



Span calculation available on request – we need the following parameter values:

  • horinzontal distance from pole to pole [m]
  • height difference from pole to pole [m]
  • sag in meters or percent to the above mentioned values [m-%]
  • ballast or added weight (ice and wind) [kg/m]



Please note:
On selecting the connection technology / termination technology or during assembly (especially at vertical laying at the poles), please take into account the implementation of an over length ring, as the large temperature fluctuations can lead to shrinkage and extractions of different plastics. There may also be an increased, non-reversible ejection of fibers from the loose tubes at the cable ends (gravity of the fiber).



Subject to technical alterations.

CPR - Regulations
Application
  • FRP-central element
  • jelly-filled loose tubes, SZ-cabling (if necessary with fillers)
  • PE-inner sheath (1,0 mm), black
  • strength members (swellable aramid yarns (dry cable core))
  • HDPE-outer sheath (1,2 mm), UV-resistant, black



Fiber / tube colors

PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).



Standard marking

PENGG KABEL – cable type – fiber count/type – ID number – meter



On request
  • dry or jelly-filled cable core
  • other sheath colors
  • colored stripes
  • tracking resistant outer sheath
  • other marking



This data sheet describes a standard type.
Numerous variants are available on request.
