I-V(ZN)H(BN)2Y
Breakoutcable
Glasfaserkabel

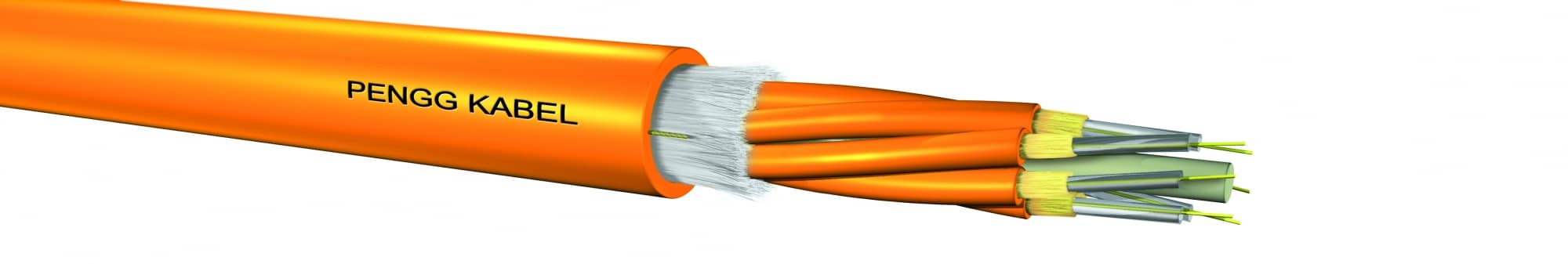

Breakoutcable, metal-free, slight rodent protection
Breakoutcable for FTTx and data center applications with additionally rodent protection. Suitable for laying on cable trays or cable channels indoors and outdoors. Can be ordered pre-assembled with connectors.
Application
- FRP-central element
- up to 24 simplex cables, stranded
- fiber with primary-coating (colored)
- sliding layer
- secondary-coating of acrylate, transparent
- aramid strength members
- FRNC-outer sheath acc. to IEC 60332-2
- strength members and simultaneous rodent protection by swellable glass yarns
- PE-outer sheath, UV-resistant
Fiber colors
PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).
Sheath color
- yellow (E9)
- orange (G50, G62,5)
- turquoise (G50 OM3)
Standard marking
PENGG KABEL – cable type – fiber count/type – ID number – CPR class CE-marking – meter
On request
- other sheath color
- pre-assembled with different connectors
- other marking
This data sheet describes a standard type.
Numerous variants are available on request.
| diameter single cable mm |
number of fibers | tensile strength* approx. N |
weight approx. kg/km |
outer diameter approx. mm |
fire load MJ/m |
|---|---|---|---|---|---|
| 2,0 2,0 2,0 2,0 2,0 2,0 2,02,4 2,4 2,4 2,4 2,4 2,4 2,4 |
4 6 8 12 16 18 244 6 8 12 16 18 24 |
2.400 2.800 3.700 4.100 3.500 3.900 5.2002.200 2.900 3.300 4.400 4.600 4.800 5.500 |
73 92 118 167 154 169 22483 89 117 220 209 228 297 |
8,3 9,3 10,7 13,1 12,7 13,3 15,99,9 11,2 12,7 15,9 15,3 16,2 18,9 |
2,5 2,5 3 3 3 3 3,52,5 2,5 3 3,5 3,5 4 5 |
* with reversible increase of the attenuation
Technical data
according to IEC EN 60794-2 – Indoor optical fibre cables
| tensile strength | see above table |
| compressive strength (crush) | 2000 N/10 cm |
| impact | 20 Nm |
| min. bending radius | static: 15 x cable-diameter dynamic: 20 x cable-diameter |
| temperature range | storage and transport: -25°C up to +60°C installation: -5°C up to +40°C operation: -5°C up to +50°C |
Subject to technical alterations.
