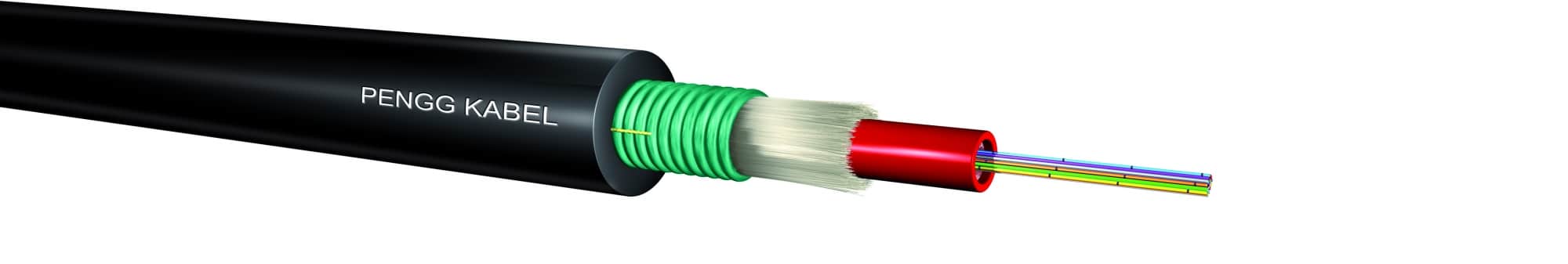

Glasfaserkabel

A/I-DQ(BN)(SR)H
ø 9,5 mm

Glasfaserkabel

Center unitube construction, watertight, rodent protection, halogen-free, flame retardant

Suited for indoor and outdoor use - for fixed laying in cable ducts, conduits or direct burial

Non-binding inquiry
Structure, Laying, Imprint
Application
  • central, gel-filled loose tube
  • strength members and simultaneous rodent protection by swellable glass yarns
  • corrugated steel tape, laminated
  • FRNC-outer sheath (1,5 mm) according to IEC 60332-2, UV-resistant, black



Fiber / tube colors

PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).



Standard marking

PENGG KABEL – cable type – fiber count/type – ID number – CPR class CE-marking – meter



On request
  • increased tensile strength
  • increased sheath thickness
  • FRNC-sheath according to IEC 60332-3
  • other sheath color
  • colored stripes
  • other marking



This data sheet describes a standard type.
Numerous variants are available on request.

Product Dates
tube diameter
mm
number of tubes max. fibers / tube max. number of fibers tensile strength
approx. N
weight
approx. kg/km
outer diameter
approx. mm
fire load
MJ/m
3,5 1 24 24 1.500 120 9,5 1,5
Technical Details
Technical data

according IEC EN 60794-6 – Indoor/outdoor optical fibre cables

tensile strength see above table
compressive strength (crush) 3000 N/10 cm
impact 10 Nm
torsion 5 cycles ±360°
kink, cable The cable do not form a kink when a loop is drawn together to a diameter 12 times the cable outer diameter.
min. bending radius R = 20 x D (cable outer diameter)
temperature range storage and transport: -40°C up to +70°C
installation: -5°C up to +60°C
operation: -25°C up to +70°C
water penetration No water on free end.



Subject to technical alterations.

CPR - Regulations
Application
  • central, gel-filled loose tube
  • strength members and simultaneous rodent protection by swellable glass yarns
  • corrugated steel tape, laminated
  • FRNC-outer sheath (1,5 mm) according to IEC 60332-2, UV-resistant, black



Fiber / tube colors

PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).



Standard marking

PENGG KABEL – cable type – fiber count/type – ID number – CPR class CE-marking – meter



On request
  • increased tensile strength
  • increased sheath thickness
  • FRNC-sheath according to IEC 60332-3
  • other sheath color
  • colored stripes
  • other marking



This data sheet describes a standard type.
Numerous variants are available on request.
