Glasfaserkabel
I-V(ZN)HH
Breakoutcable
Glasfaserkabel

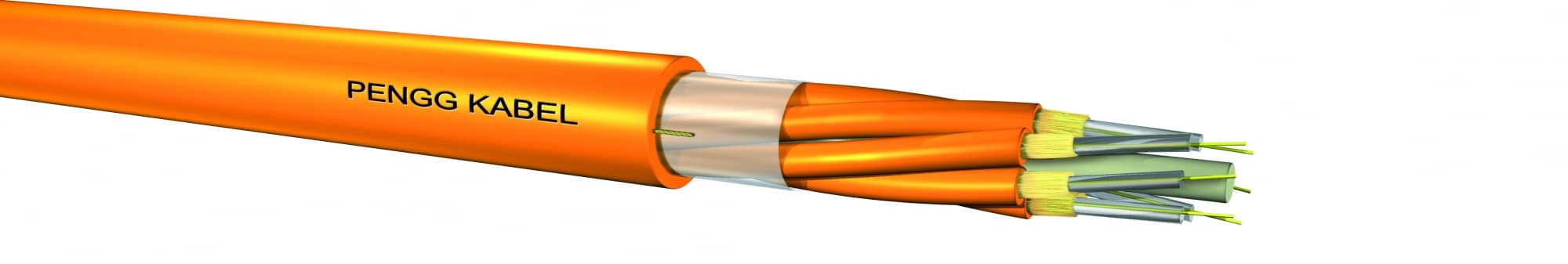

Breakoutcable, metal-free, halogen-free, flame retardant
Breakoutcable for FTTx and data center applications. Suitable for laying on cable trays or cable channels indoors. Can be ordered pre-assembled with connectors.
Application
- FRP-central element
- up to 24 simplex cables, stranded
- fiber with primary-coating (colored)
- sliding layer
- secondary-coating of acrylate, transparent
- aramid strength members
- FRNC-outer sheath acc. to IEC 60332-2
- FRNC-outer sheath acc. to IEC 60332-2, UV-resistant
Fiber colors
PENGG KABEL standard according to “Color codes – Fiber optic cables” in the document “General information” in the download area.
Upon customer request we can also manufacture according to other color codes (DIN, TIA / EIA-598 (MPO), IEC).
Sheath color
- yellow (E9)
- orange (G50, G62,5)
- turquoise (G50 OM3)
Standard marking
PENGG KABEL – cable type – fiber count/type – ID number – CPR class CE-marking – meter
On request
- FRNC-sheath according to IEC 60332-3
- other sheath color
- pre-assembled with different connectors
- other marking
This data sheet describes a standard type.
Numerous variants are available on request.
| diameter single cable mm |
number of fibers | tensile strength* approx. N |
weight approx. kg/km |
outer diameter approx. mm |
fire load MJ/m |
|---|---|---|---|---|---|
| 2,0 2,0 2,0 2,0 2,0 2,0 2,0 |
4 6 8 12 16 18 24 |
800 1.800 2.400 3.000 3.400 3.700 4.000 |
55 74 96 144 137 151 196 |
7,4 8,4 9,7 12,2 12,0 12,4 14,3 |
1,5 1,5 1,5 2 2 2 2,5 |
* with reversible increase of the attenuation
Technical data
according to IEC EN 60794-2 – Indoor optical fibre cables
| tensile strength | see above table |
| compressive strength (crush) | 1500 N/10 cm |
| impact | 10 Nm |
| min. bending radius | static: 15 x cable-diameter dynamic: 20 x cable-diameter |
| temperature range | storage and transport: -25°C up to +60°C installation: -5°C up to +40°C operation: -5°C up to +50°C |
Subject to technical alterations.
